DevTools

See how your requests are being batched and scheduled in real-time in a browser environment. For non-browser usage, see the server-side tracing section in the guide.

Installation + Setup

React

npm install batchkit-devtools-react

pnpm add batchkit-devtools-react

bun add batchkit-devtools-react

Mount the DevTools component at the root of your app, all options are exposed as individual props.

import { BatchkitDevtools } from 'batchkit-devtools-react';

function App() {
  return (
    <>
      <YourApp />
      <BatchkitDevtools
        buttonStyle={{ bottom: '80px', right: '80px' }} buttonClassName="my-custom-class"
      />
    </>
  );
}

Svelte

npm install batchkit-devtools-svelte

pnpm add batchkit-devtools-svelte

bun add batchkit-devtools-svelte

Import and render in your component. All options are exposed as individual props.

<script>
  import { BatchkitDevtools } from 'batchkit-devtools-svelte';
</script>

<BatchkitDevtools
  buttonStyle={{ bottom: '80px', right: '80px' }}
  buttonClass="my-custom-class"
/>

Vanilla

If you are not using React or Svelte (or any library at all), you can manually mount the devtools into a DOM element by passing the container to the mount function. Options are accepted as the second argument.

npm install batchkit-devtools

pnpm add batchkit-devtools

bun add batchkit-devtools

import { mount } from 'batchkit-devtools';

const container = document.createElement('div');
document.body.appendChild(container);

mount(container, {
  position: 'right',    // 'right' | 'left' | 'bottom'
  defaultOpen: false,   // start open?
});

How It Works

DevTools automatically trace all batchers created in your app by hooking into the core library. batchkit checks if the devtools are mounted before doing extra work.

Unnamed batchers appear as unnamed-1, unnamed-2, etc. You can learn more about where these batchers were defined in the trace tab, but for better labels, provide a value for the name option:

const users = batch(fetchUsers, 'id', { name: 'users' });
//                                      ^^^^^^^^^^^^^

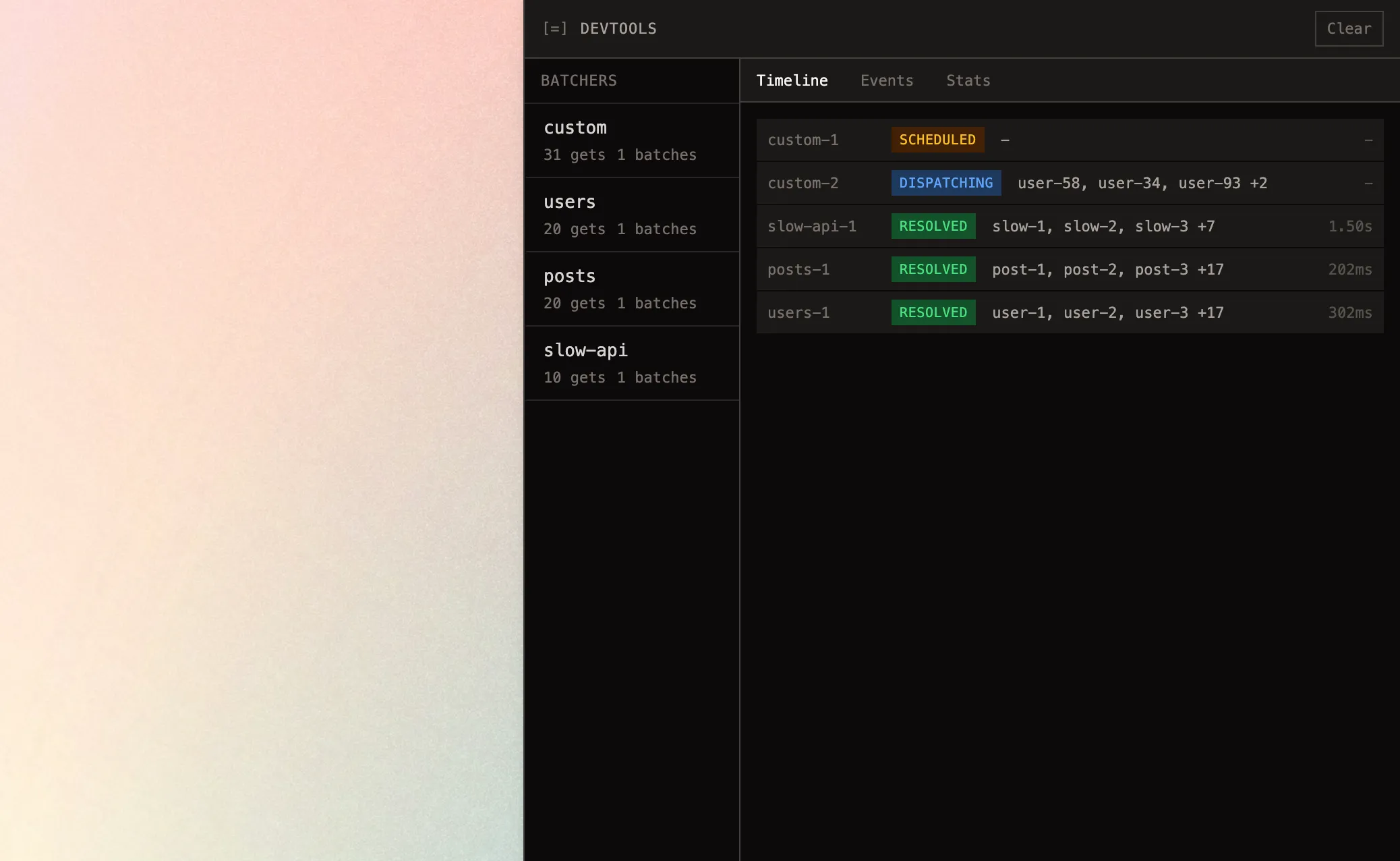

What You’ll See

Tab	Description
Batchers	All batchers in your app, with request counts
Timeline	Each batch with its status, keys, and duration
Events	Full trace log: `get`, `dedup`, `schedule`, `dispatch`, `resolve`, `error`, `abort`
Stats	Totals, deduplication rate, average batch size and timing
Trace	Function source and file location for the selected batcher

Filtering to a specific batcher

Click a batcher name in the sidebar to filter Timeline, Events, and Stats to just that batcher. Click again to deselect the batcher and view all logs again.

Resetting the devtools state

The Clear button at the top right of the panel will reset the devtools state to its initial values. This is irreversible.

Options

The HTML class related attributes have React-specific variants to be idiomatic.

Option	Type	Default	Description
`position`	`'right' \| 'bottom' \| 'left'`	`'right'`	Which edge of the screen the panel docks to
`defaultOpen`	`boolean`	`false`	Start with the panel open
`buttonStyle`	`CSSProperties`	—	Inline styles for the toggle button
`buttonClassName`	`string`	—	CSS class for the toggle button (React)
`buttonClass`	`string`	—	CSS class for the toggle button (Svelte/Vanilla)
`panelStyle`	`CSSProperties`	—	Inline styles for the panel
`panelClassName`	`string`	—	CSS class for the panel (React)
`panelClass`	`string`	—	CSS class for the panel (Svelte/Vanilla)

Bundling

DevTools are excluded from production bundles automatically. They only are added to the bundle when process.env.NODE_ENV === 'development'. This should work out of the box with most bundlers (Vite, Webpack, ESBuild, Rollup, etc).

Troubleshooting

The devtools UI is built with SolidJS. In some cases you may need to override module resolution of SolidJS for compatibility.
